WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS

Brand Name : wcon

Model Number : 3520-301XXSXX083X1

Certification : UL//SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Payment Terms : T/T

Supply Ability : 800000Kpcs

Delivery Time : 15-25Day

Packaging Details : Tube Tray

Insulator materrial : Polyyester (UL94v-0)

standard : PPS Black+30%GF

Sleeve : Brass CuZn 36pb3(C3600)

Contact Clip (4 Finger) : Beryllium copper (C17200)

Mating Pin : ∮0.4 to ∮0.56mm

pitch : 2.54mm

gender : female

color : black

type : snigle row

Contact Now

Vibration Resistance Singer Row 2.54 mm Round Pin Header 180°DIP PPS

1. Current Rating 3.0AMP
2. Contact Resistance 10mΩ Max
3. Dielectric Strength Min 1000VRMS
4. Mechanical Life Min 500 cycles
5. Mating Pin ∅0.40 To ∅0.56mm
6. Forces Polished Steel Gauge ∅0.47mm
7. Insertion 200g Max/Pin Withdrawal:60g/pin
8. Operation Temperature -40℃ to +105℃
9.Sleeve Brass CuZn36Pb3(C36000) Sn over Ni
10. Contact Clip(4 Finger) BeCu(C17200)
11. Insulator Material PPS+30%GF(UL94V-0)

Product Name: Michined Female Header connector
1.product features: high contact reliability, vibration resistance, small contact impedance.
2.product material: insulation part PPS, PA46 or PA6T plastic insulation part of the fire rating: UL94V-0 contact part: Brass.
3.scope of application: PCB computer communication cable LED integrated circuit IC power car monitor.

WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS

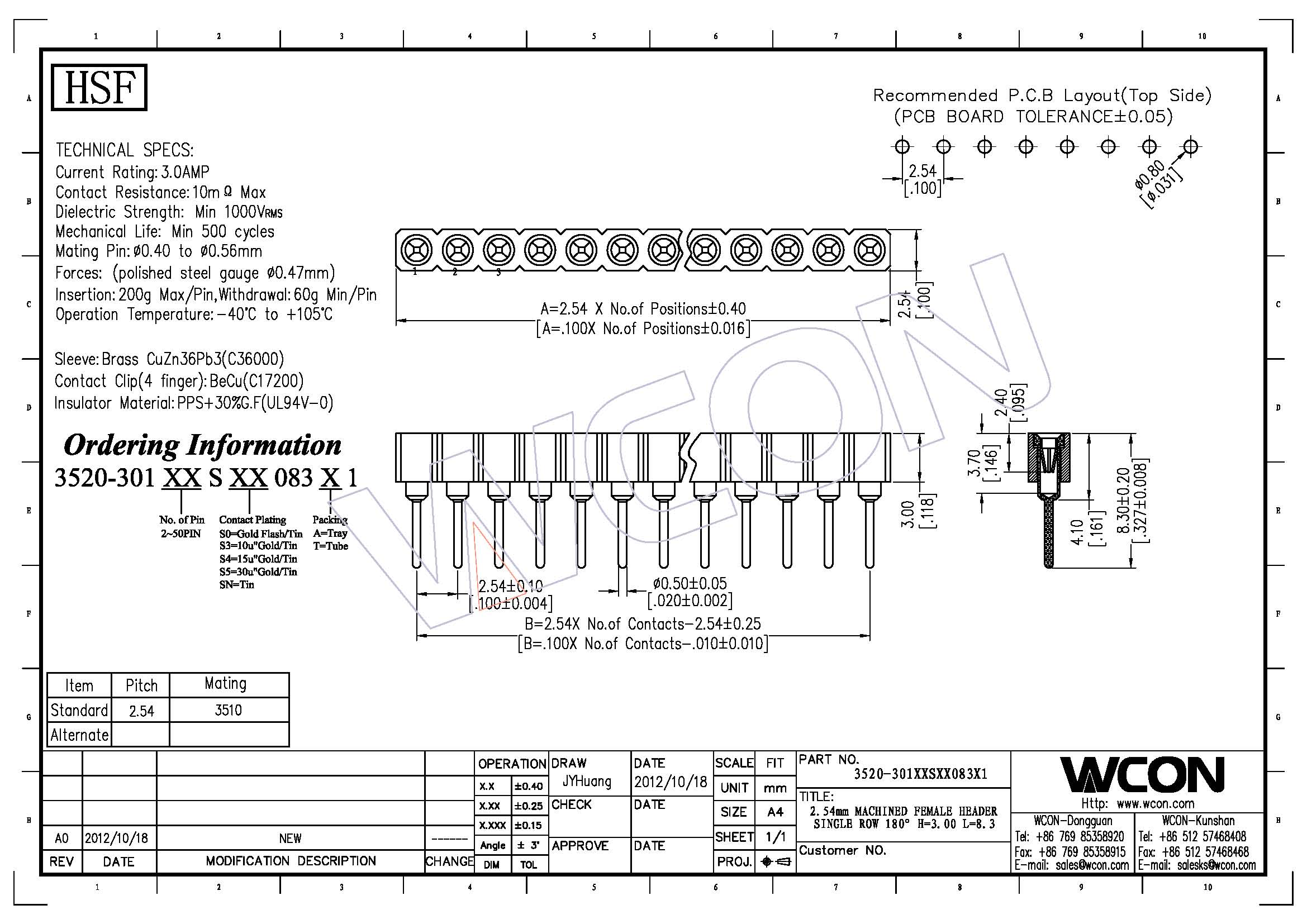

WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHSDrawing:Maching Female 3520-301XXSXX083X1.pdf
