WCON Round Pin Header / 1*20P Ninety Degrees 2.54 Mm Pin Connector

WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

WCON Round Pin Header / 1*20P Ninety Degrees 2.54 Mm Pin Connector

Brand Name : WCON

Model Number : 3510-301XXRXX127X1

Certification : UL/CUL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Day

Packaging Details : Tube Tray

Gender : Pin

product name : Round hole Pin Header

scope of application : PCB computer communication cable

Sample : Free

Operation Temperature : ﹣40℃ to +105℃

Plastic material : PPS

Contact Now

2.54mm 1*20P Ninety degrees WCON Connector Round hole Pin Header L=12.75mm H=3.0mm

1Current Rating

3.0AMP
Contact Resistance 10mΩ Max
Dielectric Strength Min 1000VRMS
Mechanical Life Min 500 cycles
Operation Temperature -40℃ to +105℃
Sleeve Brass CuZn36Pb3(C36000)
Contact Plating Au over Ni
Contact Pin ∅0.5mm
Insulator Material PPS+30%GF(UL94V-0)

Product Name: 2.54MM Michined pin connector
1. WCON Connector features: the contact reliability, anti vibration, contact resistance
2. WCON Connector material: PPS, PA46 or PA6T insulator part plastic insulator part fire rating: UL94V-0 contact: brass parts

WCON Round Pin Header / 1*20P Ninety Degrees 2.54 Mm Pin Connector

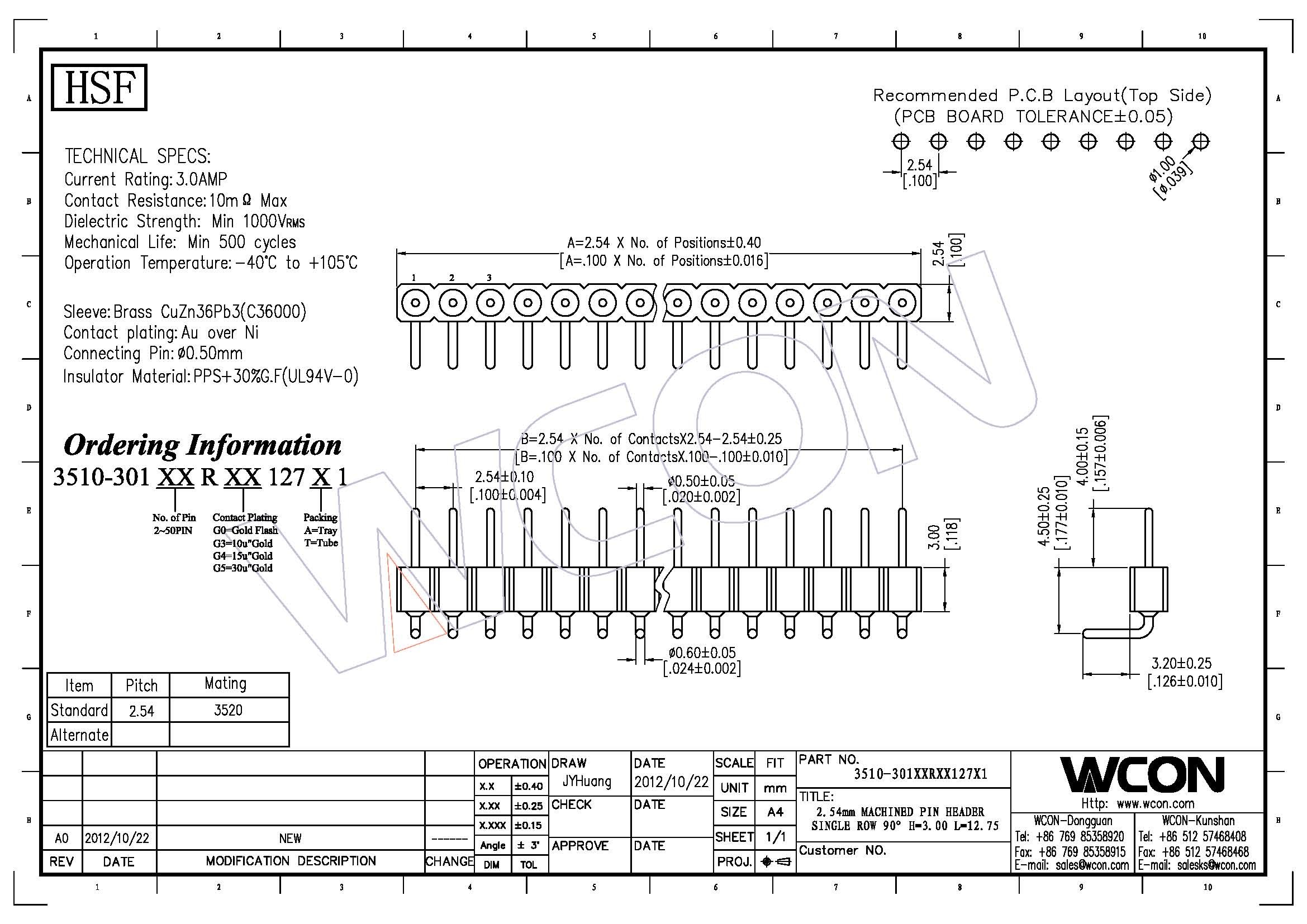

WCON Round Pin Header / 1*20P Ninety Degrees 2.54 Mm Pin ConnectorDrawing:Maching Female3510-301XXRXX127X1.pdf
