2.54mm Din 41612 Connector PBT UL94V-0 European socket Plate to plate connection

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

2.54mm Din 41612 Connector PBT UL94V-0 European socket Plate to plate connection

Brand Name : WCON

Model Number : 3410-2XXXMRSXXA2

Certification : UL/CUL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Day

Packaging Details : Tray

Gender : Female

Contact Resistance : 30mΩ Max

Sample : Free

Insulation Resistance : 1000mΩ

Operation Temperature : ﹣55℃ to +105℃

HS Code : 8536901900

Contact Now

2.54mm 2*16P Right angle DIP PBT Male Din41612 Connector Phosphor Bronze Gold Flash /Sn

1. Current Rating 3.0AMP
2. Contact Resistance 30mΩ Max
3. Withstand Voltage 1000V AC/DC
4. Insulation Resistance 1000mΩ
5. Operation Temperature ﹣55℃ to +105℃
6. Contact Material Phosphor Bronze
7. Contact Plating Au And Sn over Ni
8. Fixing Material Phosphor Bronze
9. Fixing Plating Sn over Ni
10. Housing Material PBT+30%GF(UL94V-0)
11. Cover Material PBT+30%GF(UL94V-0)

Product Name: DIN41612 connector

1. the characteristics: the product precision and reliable performance, good force strong

2. material: 1 material: rubber core PBT plus 30% glass, terminal material: copper alloy.

3. scope of application: the product is widely applied to the backplane and the daughter board communications equipment, industrial control equipment connected with the backboard and the daughter board connection, and telecommunications, aerospace and other fields.

2.54mm Din 41612 Connector PBT UL94V-0 European socket Plate to plate connection

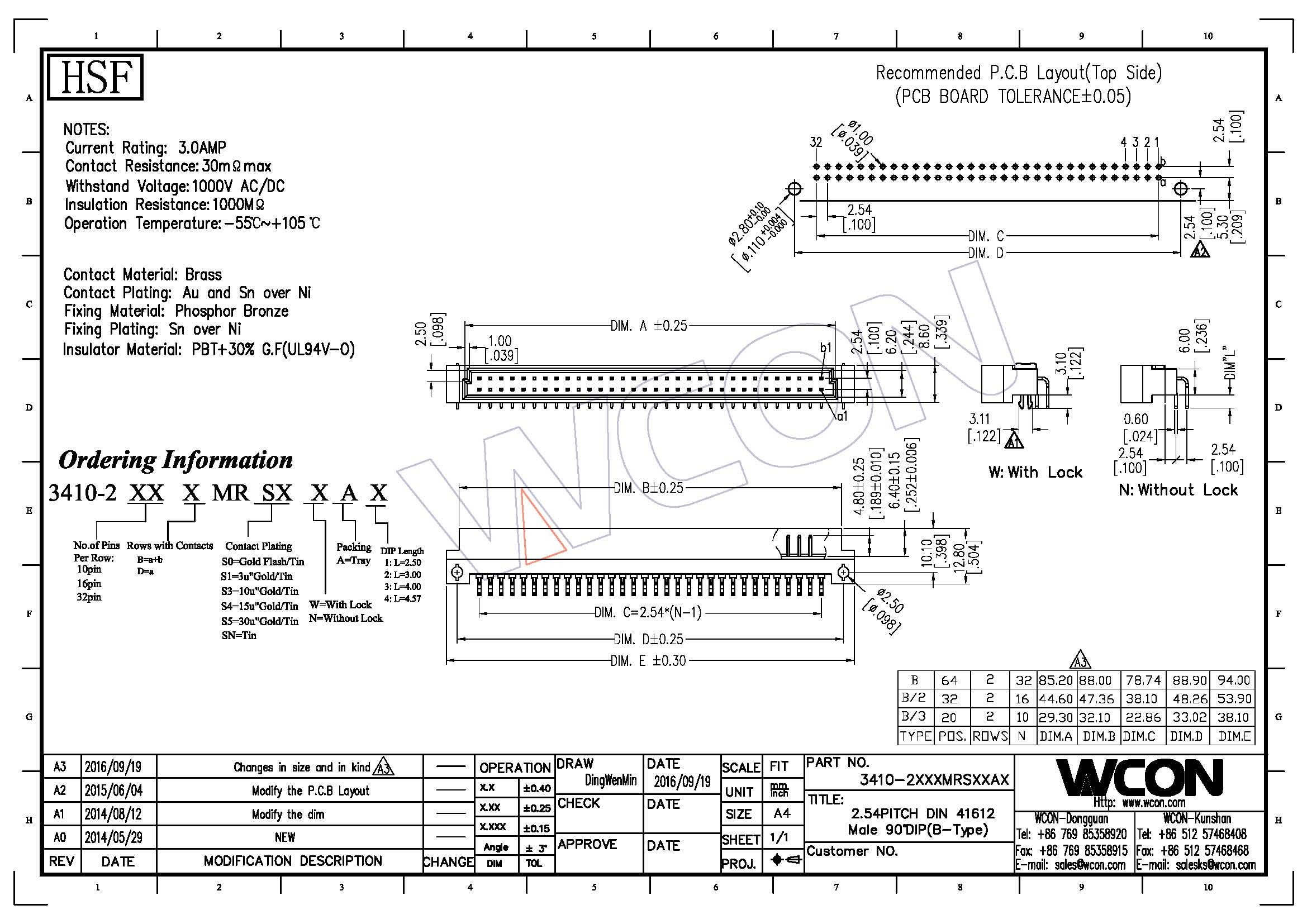

2.54mm Din 41612 Connector PBT UL94V-0 European socket Plate to plate connectionDrawing:D41612 3410-2XXXMRSXXAX.pdf
