PLCC Socket Connector 1.27 Mm Female Header SMT Phosphor Bronze Sn Plated

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

PLCC Socket Connector 1.27 Mm Female Header SMT Phosphor Bronze Sn Plated

Brand Name : WCON

Model Number : 7210-XXMSNA01

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Day

Packaging Details : tube packing

Pitch : 1.27mm

Plastic high : H=4.45

Color : Brown

type : SMT

Port : hong kong

Current Rating : 1.0AMP

Contact Now

PLCC Socket Connector 1.27mm SMT Phosphor Bronze Sn plated .

Current Rating 1.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣55℃ to +105℃
Contact Material Phosphor Bronze
Contact Plating Au or Sn over Ni
Insulator Material PPS+30%G.F UL94V-0
Normal Force 200 Grams mn on Tin/Tin and Interface
Durability Cycles min

PLCC Socket Connector 1.27 Mm Female Header SMT Phosphor Bronze Sn Plated

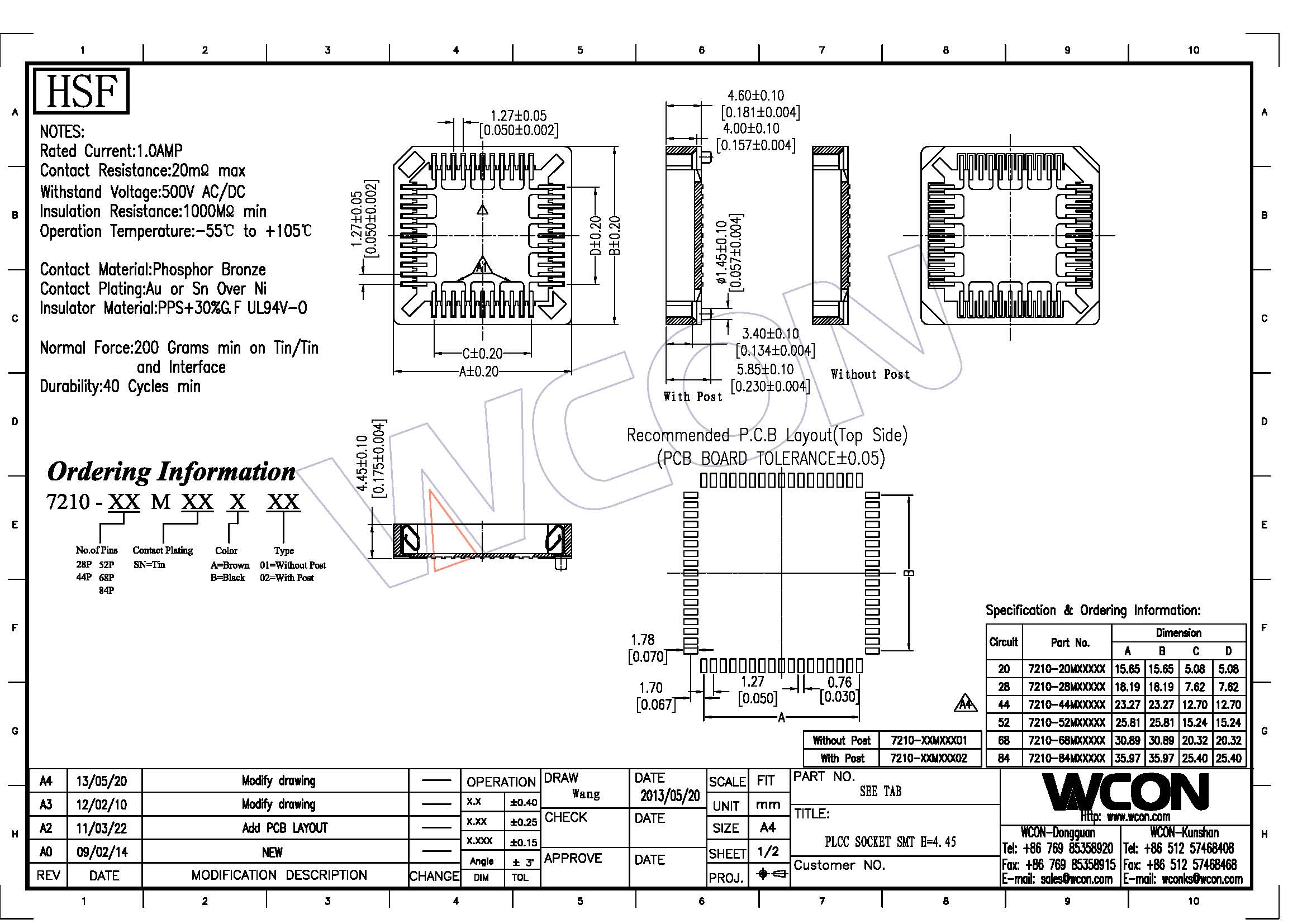

PLCC Socket Connector 1.27 Mm Female Header SMT Phosphor Bronze Sn PlatedDrawing:PLCC 7210-XXMXXXXX(01, 02).pdf


Product Tags:

PLCC 1.27 mm female header



SMT 1.27 mm female header



Sn Plated connector 1.27 mm pitch


PLCC Socket Connector 1.27 Mm Female Header SMT Phosphor Bronze Sn Plated Manufactures

PLCC Socket Connector 1.27 Mm Female Header SMT Phosphor Bronze Sn Plated Images
